Reason 1:  The source file wasn't created in the ideal quality:

Solution: Print the sample label to test if your printer is working well.

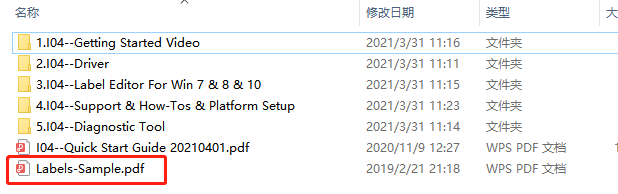

You can download the sample label from USB Driver:

OR website


Reason 2:  High print speed or density.

Solution: Try reducing your print speed (try 3 in/sec) and density (try 3 as well) to see if you get a better result.


Here's video tutorial.



For Mac

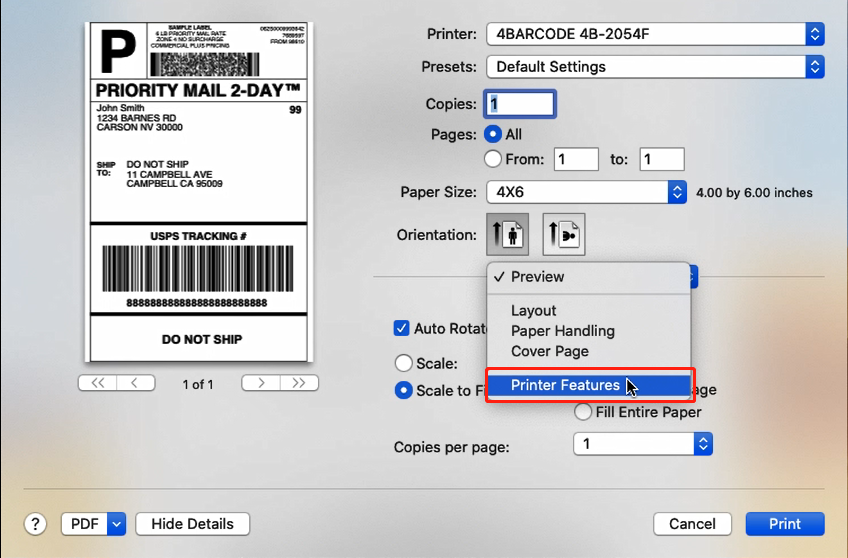

①Select "Printer Features" in "Preview"

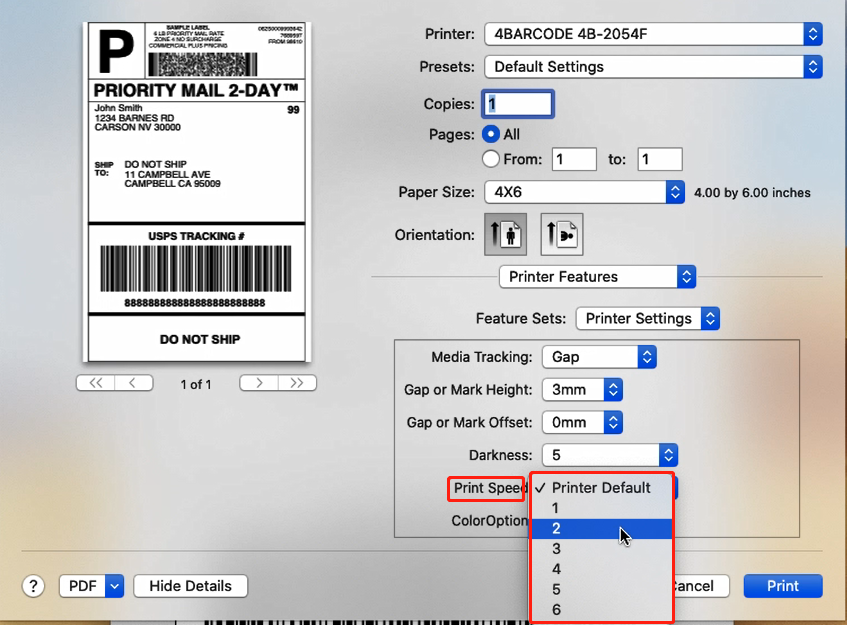

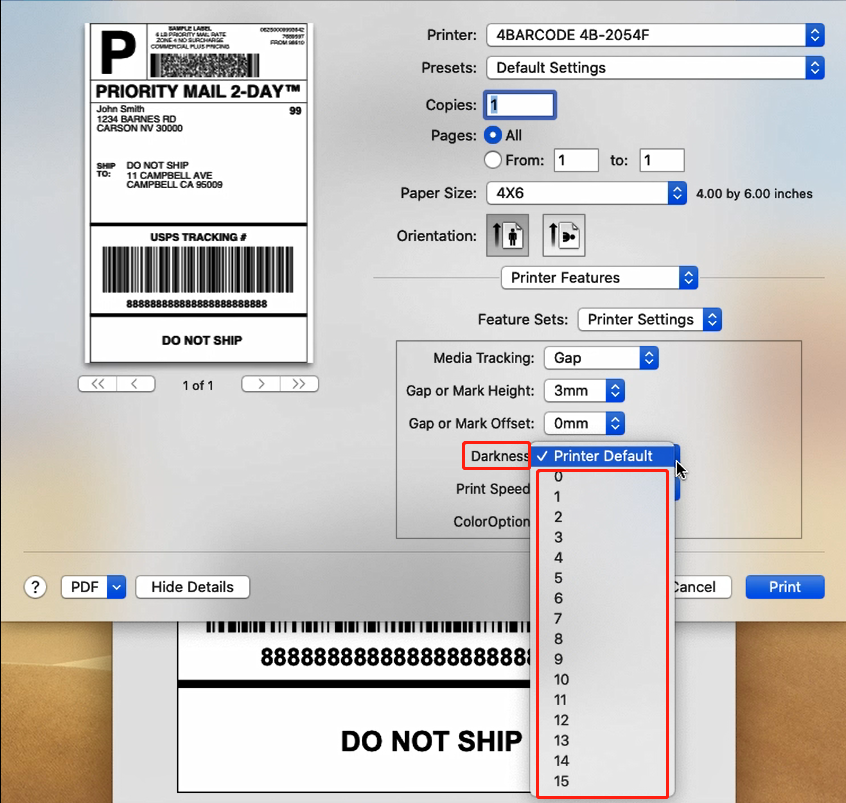

②You can change the printing speed and the Darkness of your printing

(Larger number means higher Darkness)


For Windows

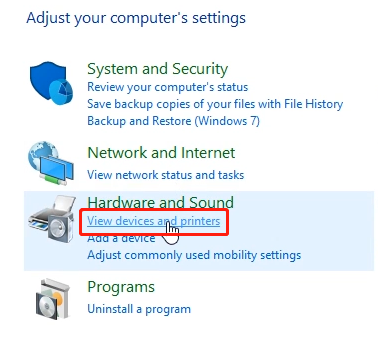

①Go to "Control panel" -> "Devices and Printers"

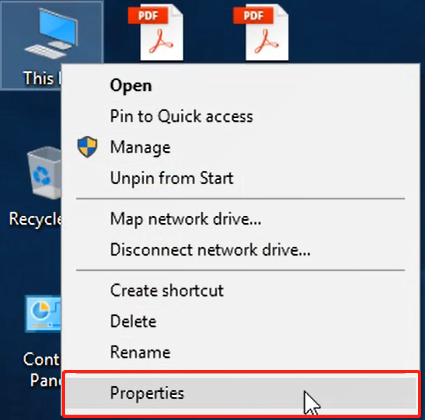

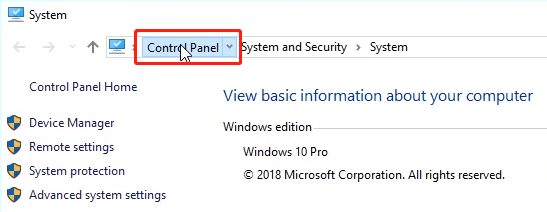

(Right click on "This PC", choose "Properties", then click on "Control panel"-> "Devices and Printers")

-> Right click on "4BARCODE 4B-2054F" -> choose "Printer Preferences"

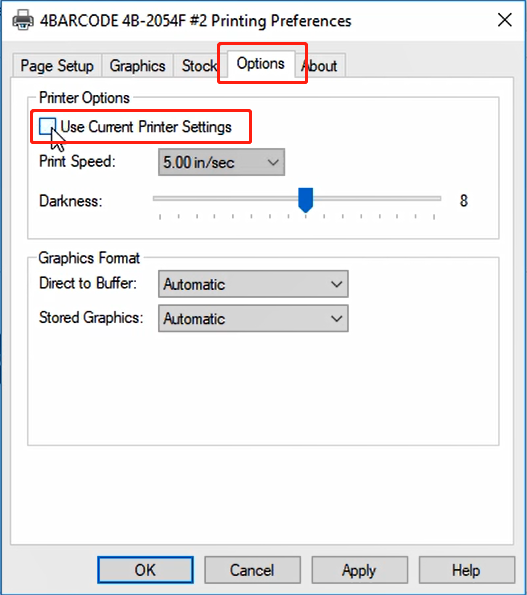

②Go to "Option" -> Untick "Use Current Printer Settings"

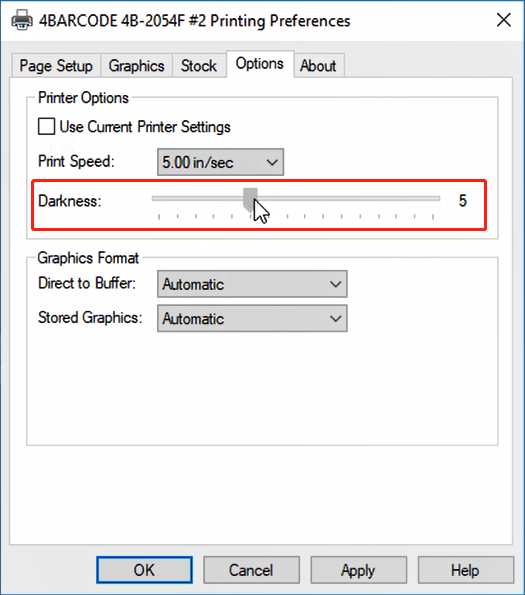

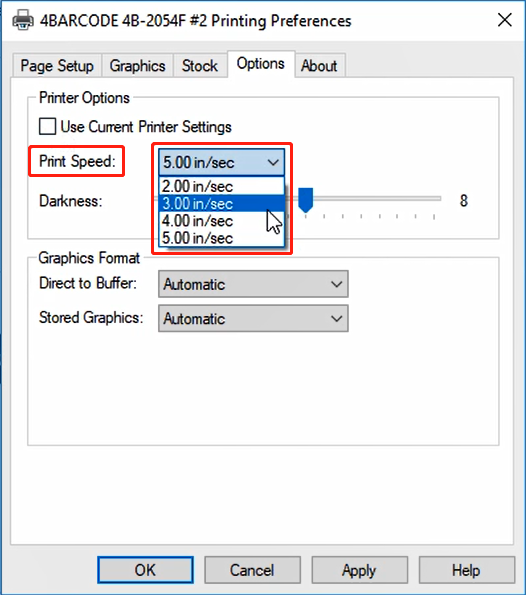

③You can change the printing speed and the Darkness of your printing

(Larger number means higher Darkness)
